12-String Bass Bridges

There are primarily two different types of adjustable bridges found on 12-string basses: 4-saddle and 8-saddle. Non-adjustable bridges are found on some custom 12’s, plus rosewood bridges have appeared on inexpensive Chinese-made basses. Some of the bridges shown here are designed specifically to work on 12-string basses while others have been adapted for use on a 12.

4-saddle adjustable bridges

The first Hamer 12-string basses incorporated a 4-saddle bridge, which forces the fundamental strings to share the same saddle as the octave strings. It did not take Hamer long to realize that the octave string pairs needed to be adjusted independently of the fundamental strings in order to achieve proper intonation. Hamer changed to using 8-saddle bridges while still building the original 12-knob series of Quad 12-string basses.

The intonation problem with 4-saddle bridges occurs because strings of differing gauges require different distances between the saddle and bridge to properly intonate. The whole purpose behind an adjustable bridge is to compensate for the differences in string gauge / length that are necessary for the instrument's harmonics to be in tune.

Using a 4-saddle bridge requires the smaller gauge octave strings to be the same length as the fundamental string. It's simply a matter of physics: Properly tuning the fundamental's harmonics automatically ensures that the harmonics of the octave strings will not be properly intonated because the string length between the bridge and the nut will be incorrect. The intonation issues caused by a 4-saddle bridge are noticeable even down to the 4th and 5th frets. Typically once you get up to playing around the 7th fret the sound becomes muddy, and at the 10th fret you are completely out of tune.

When John Gaudesi at the Yamaha Custom Shop built Doug Pinnick's Yamaha 12-string bass, it was surprising that he chose to equip it with a 4-saddle bridge. The Yamaha 12 is a well built hand-crafted instrument made of top notch woods and components, but many people say the Yamaha 12 sounds muddy live - they prefer Doug's 4-string bass sound over the sound of his 12. Since Doug frequently plays above the 7th fret, this muddiness may partly be the fault of the 4-saddle bridge and it's inability for the harmonics to be properly intonated.

Oktober Guitars utilized 4-saddle bridges on many of their 12-string bass models.

8-saddle adjustable bridges

The vast majority of 12-string basses in existence today incorporate an 8-saddle bridge. With an 8-saddle bridge the four fundamental strings have individual saddles, and each pair of high octave strings share a saddle. As long as the two high octave strings are the same gauge this system works fine. This is because the distance between the saddle and the bridge is identical for each string so the strings will intonate properly. Many players will tune one high-octave string slightly flat and the other slightly sharp to give a chorus effect, so an 8-saddle bridge is perfectly acceptable. We think an 8-saddle bridge is the best option for achieving the optimum 12-string bass sound.

This Tune-o-matic style of bridge has been standard on many different brands of Korean 12's since it first appeared on the Musicvox Space Cadet in 2000. Aside from the redesigning of the mounting posts for a couple of those brands, the bridge itself has seen very little change. It has a broader span than that of the similar Hamer bridge, which increases string separation between courses. It also requires a wider neck than those on the 12's that preceded it.

The saddles are threaded and move along the screw as it's turned. The saddles can have enough space between them to allow the saddle to lean slightly to one side. When installed on 12's that allow it to sit close to the body, this bridge typically functions without problems. But if the design of the 12 requires it to sit at a significant height above the body, the added pressure of the strings can tend to force the middle of the bridge to sag. Some companies had their bridges redesigned in an attempt to correct this problem by increasing the thickness of the base of the bridge.

Hamer bridges are also made in the Tune-o-matic style but incorporate springs on each saddle. With this system, the saddle position is adjusted by turning a socket-head screw on the outside of the bridge. A spring located between the bridge wall and the saddle keeps the saddle tightly in position, and also allows the other end of the screw to freely rest in a hole in the bridge wall. The Hamer bridges are designed to sit up off the body of the bass.

Schaller 471 8-saddle bass bridge

The Schaller 8-saddle bridge / tailpiece is commonly used for custom 8-string and 12-string basses as it is easily acquired and installed. The Schaller combination bridge / tailpiece eliminates the sagging that has been known to happen with Tune-o-matic style bridges when the string angle coming off the bridge towards the tailpiece is substantial.

The Schaller bridge unit also has more surface area that comes in contact with the body of the instrument which provides better vibration transfer from the strings to the body, thus increasing sustain and improving overall tonality. The design of the Schaller does determine the string spacing (as with all bridges) which in turn determines the neck width.

The Schaller bridge is wider than a Hamer bridge. A friend of ours discovered to his horror that he had miscalculated the neck width on a custom 12 he was building: Due to the wider bridge width combined with a thinner neck, the strings were positioned outside of the neck on the highest few frets.

Alembic 8-saddle bass bridges

These Alembic 8-string bass bridges could easily be modified for use on a 12-string bass simply by cutting additional string slots. The brass bridge may be an earlier version as it appears to be fabricated from parts that are screwed together. We think it's cool that when they needed a bridge for this application they figured out a way to simply make one out of brass instead of relying on other options that may have been available. The other bridge was machined.

12-saddle adjustable bridges

A small number of 12-string basses have been retrofitted with custom 12-saddle bridges. This Hamer Quad bass has had the original bridge replaced with a 12-saddle bridge and the string arrangement has been changed to Inverted.

After considerable thought we think a 12-saddle bridge might work contrary to the typical 12 sound. When using an 8-saddle bridge, the pair of octave strings can be very slightly out of tune with each other due to minute variations in the angle of the saddle or the way the string slots are cut. A 12-saddle bridge would allow every string to be perfectly intonated, possibly making the tuning "too" precise. This could very well eliminate some of the natural chorusing effect inherent in the instrument, in effect "neutering" the 12-string bass sound to some degree.

A 12-saddle bridge along with a new nut would allow for the string arrangement to be changed.

Non-Adjustable Bridges

Warrior 12-string and 15-string basses are typically built with stationary non-adjustable brass bridges. This type of bridge offers no possibility of properly tuning string harmonics. The bridge is installed at an angle; this ensures the string harmonics in each octave pair will be out of tune with each other since the distance between the bridge and nut will be slightly different for each string.

While the sales pitches for some inexpensive Chinese 12-string basses state that they have an "adjustable" bridge, the adjustment is limited to a height adjustment on each end of the bridge. The bridge is made of rosewood with slots cut for the strings rather than having metal string saddles. This kind of bridge is usually only found on the cheapest acoustic guitars and is unacceptable for use on a 12-string bass. It offers no possibility of properly tuning the harmonics and the strings will quickly eat into the rosewood. We think the only way to make basses with these kinds of bridges playable is to immediately replace the bridge with a proper metal one.

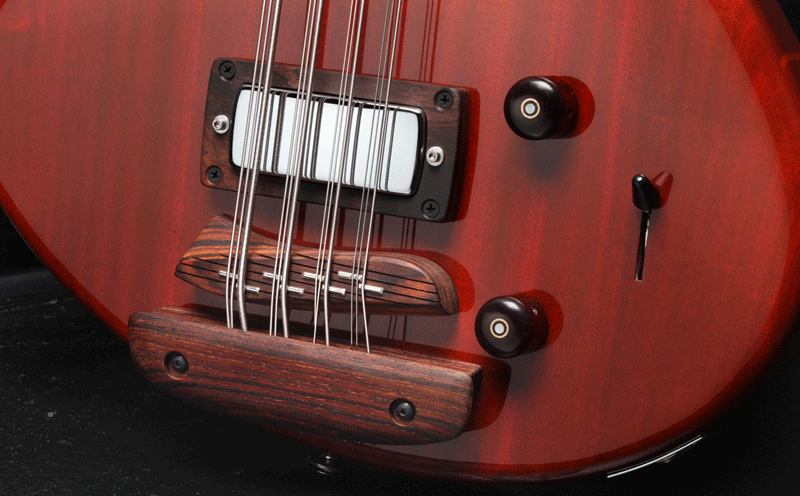

Tim Whitehouse used non-adjustable bridges on his 12-string basses that allowed for tuning the octaves separately from the fundamentals. Tuning would more closely approximate what was possible with an adjustable bridge, presuming that the correct gauges of strings were used.

A note about Early Waterstone Bass Bridges

The first production run of about 100 Waterstone basses (which included the TP-1 and TP-2 models) incorporated a bridge with a 2 mm-thick base. The bridges on these basses were designed to sit well up off the body of the instrument. While these bridges work fine when positioned onto or low to the body, positioning them high resulted in a more severe string angle to the tailpiece which quickly caused the bridges to bend in the center. Within one year the problem had been recognized so Waterstone ordered replacement bridges with a 4 mm-thick base. The replacement bridges were provided free of charge to all bass owners who reported the bending problem.

While the bridges with the thicker bases have solved the bending problem, it should be noted that the side walls of the bridge actually provide more stability against bending than does the base. As shown in these photos, the side walls were not strengthened.
